OmniOn Power Infinity Series

The Infinity S DC power system is a compact power plant that supports dual-voltage (+24V/- 48V) operation using a comprehensive range of advanced rectifiers and DC/DC converters. Primary voltage is supported by rectifiers and battery reserve, while secondary voltage is supported by DC/DC converter modules. Primary voltage can be -48V or +24V.The Infinity S power system has primary voltage capacity for +24V and -48V power up to 800A; secondary voltage capacity is up to 120A per expansion module.

Infinity M may be configured as a +24V or -48V single-voltage power system or as a “dual-voltage” power system that supports rectifiers and converters. The primary voltage is supported by +24V or -48V rectifiers and battery reserve, while secondary voltage is supported by DC/DC converters. The primary voltage capacity is 1,600A at 24V and up to 1,600A at 48V. When equipped, secondary voltage capacity is up to 600A per horizontal panel. The Infinity M can range from 600 to 1,600A in a single bay. Infinity M systems may be equipped in a 7-foot framework, a half-height (42”) frame for mounting on battery stands, or supplied frameless for field install applications.

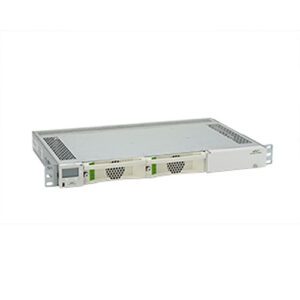

The Infinity S-Flex DC power system is a compact power plant that supports 48V operation through the use of a comprehensive range of advanced rectifiers. The Infinity S-Flex power system can support an output capacity up to 27kW and be equipped with one or two distribution heads. Each distribution module is 3U (133mm) tall and accommodates up to 26 load DIN breaker positions and up to eight battery DIN breaker positions. A secondary distribution panel can be added to accommodate an additional 30 breaker positions.

NE050AC48ATEZ 48VDC, 50 Amp Output

NE075AC48ATEZ 48VDC, 75 Amp Output

NE100AC24ATEZ 24VDC, 100 Amp Output
